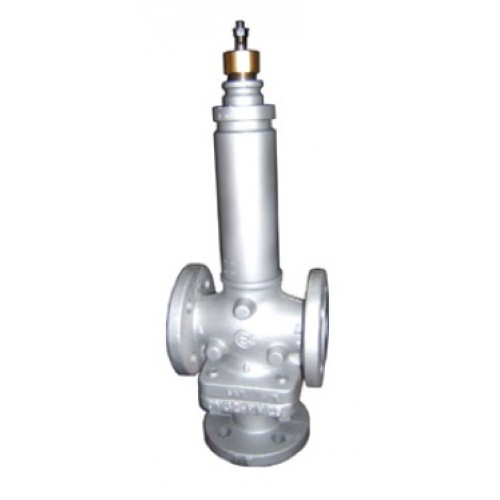

3-way Valves 3FAA25PR7

MICRA®, motorised valves for fan-coil units (88) MCA, universal electro-thermal actuators (8) 2-way globe valves (110) 3-way globe valves (92) » 3-way Valves PN16 (-10° ÷ 140°C) threaded connections (9) » 3-way Valves PN16 (-10° ÷ 140°C) Flanged connections (6) » 3-way Valves PN16 Tight Close-off (5) » 3-way Valves PN16 (4) » 3-way bronze valves PN16, threaded connections (6) » 3-way Flanged Valves PN16 (-10°C / +150°C) (11) » 3-way Valves PN25 (-10°C / +230°C) (8) » 3-way Valves PN25 (-10°C / +300°C) (8) » 3-way Valves PN40 (-10°C / +230°C) (10) » 3-way Valves PN40 (-30°C / +350°) (10) » Actuators-Valve Linkages for Controlli valves (6) » Actuators-Valve Linkages for valves from other manufacturers (9) Valve Actuators (56) Valves Accessories & Options (15) Butterfly valves, Shoe valves (28) PICVs (Dynamic pressure independent control valves) (9) Damper Actuators (68)

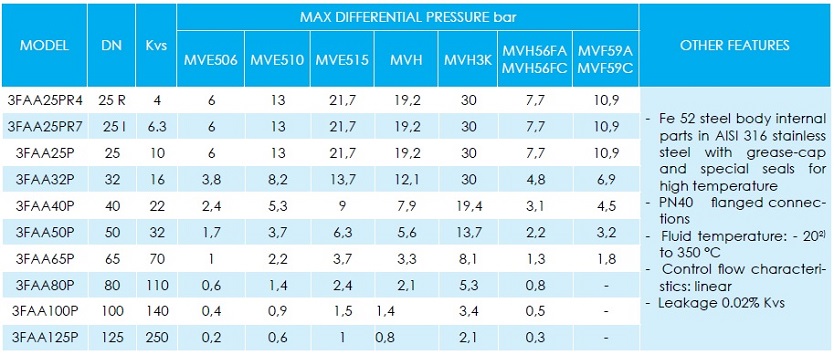

Specification 3FAA25PR7
DN	25 I
Kvs	6.3

Thumb	File Name	File Size	Action
	3F.._DBL317e.pdf	251.8KB

Series 3F PN40 - Stroke 16.5 mm (DN25), 25mm (DN32-65), 45mm (DN80-125)
- To be motorised by MVE-MVH actuators.

Thumb	File Name	File Size	Action
	3F.._DBL317e.pdf	251.8KB

servomotoare
DN	25 I
Kvs	6.3

3-way Valves 3FAA25PR7

Product Code: Controlli 3FAA25PR7
Availability: Ask
Weight: 15.70 kg
